LDO
The Low Dropout Regulator (LDO) is a low-voltage differential linear voltage regulator. Low voltage drop (LDO) linear regulators have the advantages of low cost, low noise and low static current. It also requires very few external components, usually only one or two bypass capacitors.

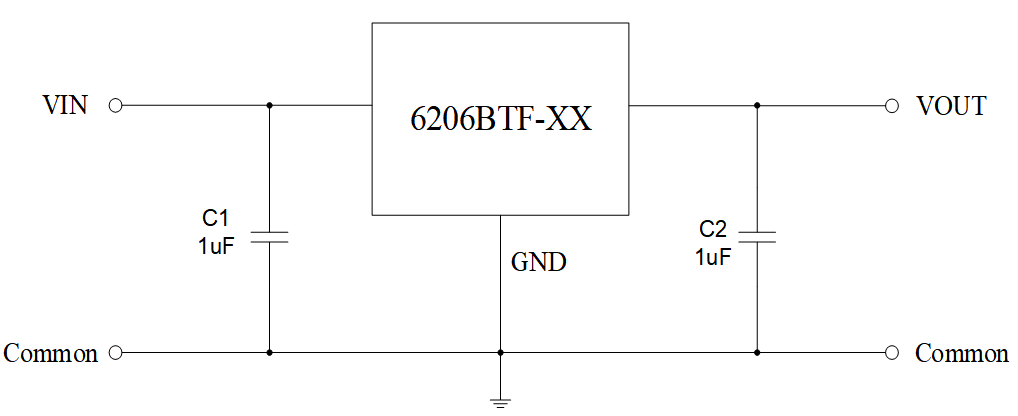

MST6206BTF-XX：5.5V、300mA、6uA、Low voltage linear regulator
The MST6206BTF-XX series are highly precise, low power consumption,3 terminal, positive voltage regulators manufactured using CMOS technologies voltage and an error correction circuit.The series is compatible with low ESR ceramic capacitors.
The current limiter fold back circuit operates as a short circuit protection as well as the output current limiter for the output pin.

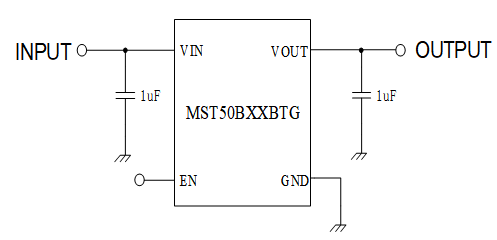

MST50BXXB：6.0V、800nA、500mA、Low voltage linear regulator
The MST50BXXB series is an ultra-small, low dropout (LDO) linear regulator that can source 500mA of output current.The MST50BXXB has fast response to input voltage transient and load current transient, and ensures no overshoot voltage during MST50BXXB startup and short circuit recovery.
The MST50BXXB series has thermal shutdown, current limit, and short circuit protections for added safety.
The MST50BXXB series contains eight fixed output voltages of 1.2V, 1.5V, 1.8V,2.5V 2.8V, 3.0V, 3.3V,3.6V.
MST51XXB：15V、500mA、1uA、80dB、EN、Low voltage linear regulator
The MST51XXB series is an ultra-small, low dropout (LDO) linear regulator that can source 500mA of output current. The MST51XXB series is designed to provide high PSRR, high input voltage, and excellent load and line transient performance.
The MST51XXB series has thermal shutdown, current limit, and short circuit protections for added safety. Shutdown mode is enabled by pulling the EN pin low.
The MST51XXB series contains eight fixed output voltages of 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 4.0V and 5.0V.
MST52LXXB：30V、200mA、1.6uA、Low voltage linear regulator
The MST52LXXB series is an ultra-small, low dropout (LDO) linear regulator that can source 200mA of output current. The MST52LXXB series is designed to provide high input voltage, and excellent load and line transient performance.
The MST52LXXB series has thermal shutdown, current limit, and short circuit protections for added safety.
The MST52LXXB series contains nine fixed output voltages of 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 4.0V, 4.2V and 5.0V.
MST54XXB：45V、High PSRR、350mA、2.8uA、EN、Low voltage linear regulator
The MST54XXB series is an ultra-small, low dropout (LDO) linear regulator that can source 350mA of output current. The MST54XXB series is designed to provide high PSRR, high input voltage, and excellent load and line transient performance.
The MST54XXB series has thermal shutdown, current limit, and short circuit protections for added safety. Shutdown mode is enabled by pulling the EN pin low.
The MST54XXB series contains four fixed output voltages of 1.8V, 3.0V, 3.3V and 5.0V.
MST56XXB：60V、150mA、2.1uA、High PSRR、EN、Low voltage linear regulator
The MST56XXB series is an ultra-small, low dropout (LDO) linear regulator that can source 150mA of output current. The MST56XXB series is designed to provide high PSRR, high input voltage, and excellent load and line transient performance.
The MST56XXB series has thermal shutdown, current limit, and short Circuit protections for added safety.
The MST56XXB series contains five fixed output voltages of 3.0V, 3.3V,3.6V,5.0V and 12.0V.
MST5AXXBTS-C：100V,100mA,4.5uA、Linear voltage regulator
MST5AXXBTS-C is a high-voltage low-power LDO with an input voltage up to 100V, a static current of 4.5uA (VIN=12V), ±2% high output voltage accuracy, and a maximum output current of 100mA. MST5AXXBTS-C has a fast response to input voltage transients and load current transients, ensuring no overshoot voltage during startup and short-circuit recovery.
MST5AXXBTS-C has short-circuit protection, current limiting protection, and over-temperature protection functions. MST5AXXBTS-C includes two fixed output voltages: 3.3V and 5.0V.
