MST2100KD：Motorcycle single-phase magneto regulator control chip

MST2100KD is a voltage regulator controller adaptive for single phase high speed magneto applications. It receives power from magneto and regulates battery voltage through low Rdson MOSFETs, the MST2100KD can keep energy conversion most efficient, and reduce regulator power loss and self heat.

Multiple built-in protection mechanisms in MST2100KD can prevent regulator and motorcycle load from damage. OVP circuit (Over Voltage Protection) can disconnect power from the load when voltage stress occurs on the load, especially on the battery absent condition. Hot Plug function integrated with MST2100KD will prevent regulator from voltage spike damage due to loosing wires caused by driving vibration.

■ Adaptive to single-phase magneto

■ Zero Crossing regulation

■ Over voltage protection with fast response

■ Group wave modulation to keep each phase  in balance

■ Integrated internal regulator LDO

■ Hot-plug protection for MOSFETs

■ The voltage of the battery is adjustable

■ Easy to use:only fewexternal components

■ Available Packages：SOP-14

MST2102Q3KF：Motorcycle three-phase magneto regulator control chip

MST2102Q3KF is a voltage regulator controller adaptive for single phase high speed magneto applications. It receives power from magneto and regulates battery voltage through low Rdson MOSFETs, the MST2102Q3KF can keep energy conversion most efficient, and reduce regulator power loss and self heat.

Multiple built-in protection mechanisms in MST2102Q3KF can prevent regulator and motorcycle load from damage. OVP circuit (Over Voltage Protection) can disconnect power from the load when voltage stress occurs on the load, especially on the battery absent condition. Hot Plug function integrated with MST2102Q3KF will prevent regulator from voltage spike damage due to loosing wires caused by driving vibration.

■ Adaptive to single-phase magneto

■ Zero Crossing regulation

■ Over voltage protection with fast response

■ Group wave modulation to keep each phase in balance

■ Integrated internal regulator LDO

■ Hot-plug protection for MOSFETs

■ The voltage of the battery is adjustable

■ Easy to use:only fewexternal components

■ Available Packages：SOP-14

MST007：Motorcycle three-phase magneto regulator control chip

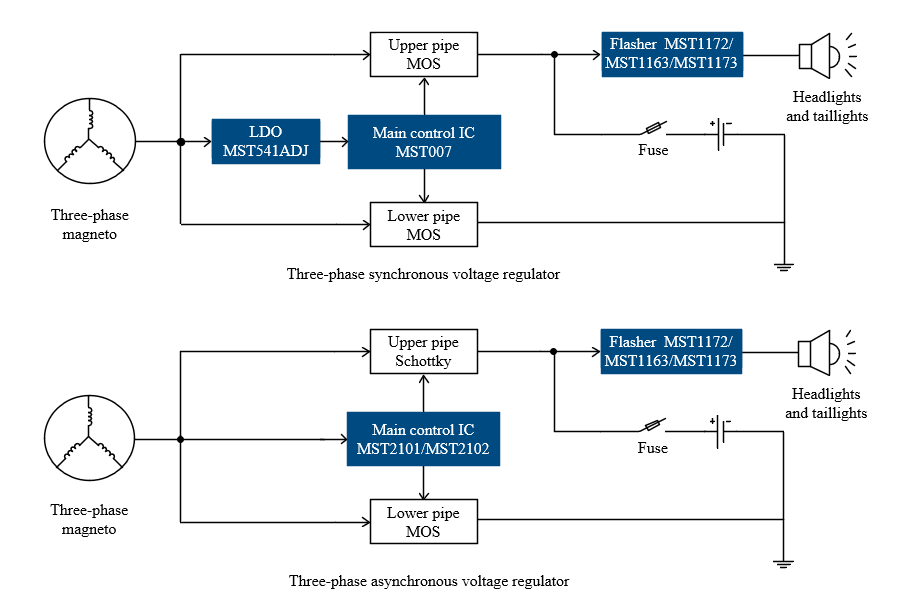

MST007 is a control IC used for synchronous voltage regulator of motorcycle magneto, suitable for high power magneto applications.

It has built-in multiple protection mechanisms. Protect the load from high voltage shock when the battery is disconnected. The zero voltage regulation method can suppress the electromagnetic interference of the system and reduce the heat load of the voltage regulator. Through internal timing management, the power of each phase is evenly distributed, avoiding the phenomenon of single phase power concentration, controlling the steady and orderly work of the voltage regulator, ensuring the reliable and durable motorcycle charging system. The use of integrated IC can reduce the static current consumption and extend the battery life.

■ Adopt zero voltage regulating mode

■ High power synchronous voltage regulator

■ Timely pressure regulation when over voltage

■ Hot plug protection

■ he power of each phase

■ Power supply modulation voltage is adjustable

■ Ultra-low static current

■ Simple application scheme

■ Available packages:LQFP32L
